Version 7.5.0
Thanks
- For reporting that
true:andfalse:did not work as keyword keys- Wes Oldenbeuving (@Narnach)
- For reporting that creating the editor panel for the BEAM Chunks Code editor at boot raised an “Access is allowed from event dispatch thread only.” error.
- @mgom
- Anton Medvedev (@antonmedv)
- Bryan Clark (@moenzuel)
- David (@davit555)
- Stephan Kämper (@s2k)
- Andrei Dziahel (@develop7)
- Tomasz Wiśniewski (@quaint)
- Олег Дулецкий (@dog-64)
- Carlos Brito Lage (@cblage)
- Markus Lervik (@horros)
- @simapetr85
- @kevinhagel
- Yarik (@yarikc)
- Tomislav (@trajakovic)
- For reporting that creating the editor panel for the BEAM Chunks Documentation editor at boot raised an “Access is allowed from event dispatch thread only.” error.
- Ram Kumar (@ramka001)
- @aby2503
- Zoltán Marić (@zoltanmaric)
- David (@davit555)
- For requesting that
#{auto-close with}- Matt Briggs (@mbriggs)
- For reporting a potential race-condition that led to pre-maturely decompiling an incomplete
.beamfile when it is being rebuilt.- Callum Dempsey Leach (@mmacheerpuppy)
- Kevin Kaland (@wizonesolutions)
- Iuri L. Machado (@imetallica)
- Fabian Sosa Escalada (@zurcacielos)
- For reporting that the bad
.beamfiles that are test cases in Erlang’s:kerneltest code were correctly caught by the bug reporter, but they should be ignored since they’re a known failure.- S. M. AMRAN (@netcse)
- For reporting the null argument being passed for
startingReferenceinElixirPsiImplUtil.aliasToModular.- Szymon Jeż (@szymon-jez)
- Josh Taylor (@joshuataylor)
- Markus Lervik (@horros)
Changelog
v7.5.0
Enhancements
- #1055 - Refactor
ElixirPsiImplUtilinto separate files tied to specific classes or interfaces to shrink its size. - @KronicDeth - #1073 - Complete
#{with}. - @KronicDeth - #1109 - @KronicDeth
- Read Write Accessor Detector
- Variable/Parameter declarations/rebindings are highlighted as writes while other usages are highlighted as reads.
- Improved Find & Show Usages
- Added Find & Show Usages for Functions at declaration and usage site
- Multi-clause functions use all clauses as targets and find usages of all clauses.
- Improved Find & Show Usages for Modules/Aliases
- Added Find & Show Usages for Functions at declaration and usage site
- Improved Element Descriptions
- It is easier to distinguish
aliases and thedefmodulethat is being aliased because element description now includealiasordefmodulebefore the Alias name based on how the Alias is defined in the scope. - Call definitions use the same presentation for Structure View and Find Usages, so that Compile/Runtime time icons, and visibility are the same in both.
- It is easier to distinguish
- Read Write Accessor Detector
- #1111 - Regression test for #1091 - @KronicDeth
- #1120 - Add regression tests for #1116 that test that parameter and variables can be renamed. - @KronicDeth
- #1124 - Update IntelliJ versions in build matrix to include
2018.1and latest patch version of other versions. - @KronicDeth - #1126 - @KronicDeth
- Add Elixir 1.6.X to build matrix
- Update grammar and quoter to match native 1.6 behavior when SDK is >= 1.6.
- New default SDK level is 1.7 to handle builds from
master.
- #1127 - Regression test for #1105 - @KronicDeth
Bug Fixes
- #1056 - Certain
.beamfiles in the OTP source are purposely invalid, so ignore them when trying to parse and don’t log the expected error. - @KronicDeth - #1060 - Log available bytes and total size when header is not
FOR1. - @KronicDeth - #1071 -
erl_abstract_codeformatDbgichunks can now be navigated similar to howelixir_erlformat Dbgi chunks can be navigated. Instead of converting the Erlang Abstract Code back to Erlang, which would not be highlighted if intellij-erlang and requires the user to know Erlang, the Erlang Abstract Code is translated back to Elixir source, so you can use the Dbgi chunk view to translate Erlang to Elixir. - @KronicDeth - #1111 - Allow zero or more new lines after the struct name before the opening curly brace (
{). - @KronicDeth - #1112 - @KronicDeth
-
In order to prevent
Access is allowed from event dispatch thread onlyerrors when creating read-only code editor in subtabs of the BEAM Chunks editor, only create those editors when their parent tab is selected.Affected tabs:
- Code (Elixir & Erlang)
- ExDc
- Dbgi (Elixir & Erlang)
-
- #1114 - Check for suffix instead of full match to detect predefined macros when annotating. Location strings have become more complex, such as including the file path for root level modules, so the old exact matching on the module name no longer works. - @KronicDeth
- #1120 - Restore parameter and variable rename. It broke because the changes to make Find Usages work and have Go To Declaration default to Find Usage when there is only one target disabled the default selected element code that the
VariableInplaceRenameHandlerused. - @KronicDeth - #1121 - @KronicDeth
- Allow module attribute declaration to resolve to itself, so that unused module attributes don’t say they can’t find the declaration.
- Restore rename module attributes.
- #1127 - Allow
trueandfalseto be keyword keys. - @KronicDeth
README Updates
Features
.beam Files
BEAM Chunks
Dbgi
Tab
The Dbgi tab appearance varies based on whether it was created with Erlang or Elixir, reflecting the fact that the Dbgi format is dependent on the backend that wrote it.
####### Elixir (:elixir_erl backend)
The Dbgi tab show the single value map entries: :file, :line, and :module.
For the multi-value keys: :attributes, :compile_opts, and :definitions, there are individual tabs.
######## Attributes
The Attributes tab has the same format as the Attrs chunk.
######## Compile Options
The Compile Options tab is usually empty, much like the CInf options key for Erlang.
######## Definitions

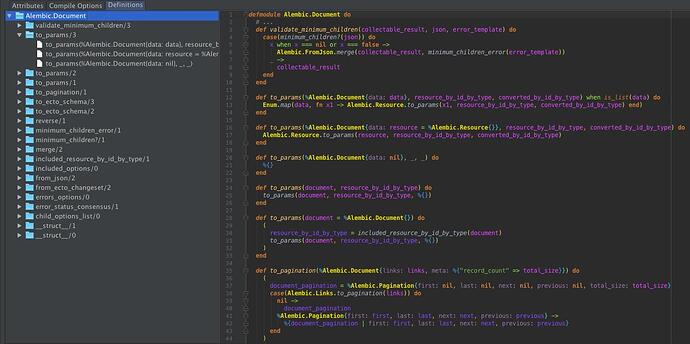

The Definitions tab is split between a tree of Module, Function/Arity and clauses.
Clicking on a clause will show only that clause, but clicking on a higher level in the tree will show all clauses in the function or the entire Module.
The AST stored in the definitions tab and the process of converting it back to code is not format preserves, so it will not look precisely like the source code as the AST has undergone some macro expansion before its put in the Dbgi chunk. As common idioms are understood, reversals will be add to the renderer.
####### Erlang (:erlang_abstract_code backend)
The Dbgi tab has Abstract Code and Compile Options tabs.
######## Abstract Code
The Abstract Code tab is split between a tree of Attributes, Functions, Function/Arity, and clauses.
Clicking on a clause will show only that clause, but clicking on a higher level in the tree will show all clauses in the function or the entire Module.
The abstract code stored in the :erlang_abstract_code backend format is the Erlang Abstract Format. Instead of converting the Erlang Abstract Format back to Erlang, which would require IntelliJ Erlang to highlight and annotate and for you to be used to reading Erlang, the Erlang Abstract Format is translated back to Elixir. Using the BEAM Chunk Dbgi viewer can be a way to convert compiled Erlang code to Elixir source automatically.
Find Usages and Show Usages
Find Usages is a feature of JetBrains IDEs. It is the dual of Go To Declaration. While Go To Declaration jumps from a usage to the declaration, Find Usages finds all usages that could jump to a declaration. When used on a usage, Find Usage first finds the declaration(s) and then finds usages of those declaration(s).
Find Usages will open all the found usages in the Find Tool Window (unless you have it configured to not open and jump direct if only one usage is found). If you want to jump to usages quickly, Show Usages, which opens a lookup dialog at the cursor and allows you to select a usage to jump to in the lookup dialog with the arrow keys may be more useful.
Function
- Place the cursor over the name of a function, such as
hdin the definitiondef hd([h | t]]) doorhdin a usagehd(list). - Active the Find Usages action with one of the following:
Alt+F7- Select Edit > Find > Find Usages from the menu.
- A Find Usages dialog will appear in the Find Tool Window.
If a function has multiple clauses, all clauses for the function will be resolved and used as targets.
You can be sure that all clauses were correctly identified as targets because of the multiple entries in the top “Functions” target grouping.
If instead of bringing up the Find Tool Window, you’d like a lookup dialog above the cursor, you can use Show Usages.
- Place the cursor over the name of a function, such as
hdindef hd([h | t]]) do - Active the Show Usages action with one of the following:
Alt+Cmd+F7- Select Edit > Find > Show Usages from the menu.
- A Usages lookup will appear above the cursor.
- Select an element from the lookup to jump to that usage
)
