I think the trick today is to find a configuration in which no two robots are in the same cell. The author of AoC must have had a starting grid to which he applied velocities in reverse to get our puzzle input, and chances are after each time step there will be at least two robots in one cell by chance. At least that’s what worked for me: advent-of-code-2024/lib/advent_of_code2024/day14.ex at main · ibarakaiev/advent-of-code-2024 · GitHub.
igorb
jarlah
i usually never feed chatgpt a full requirement. When im lazy and want to print a grid i give it an empty function with desired parameters and ask it to implement. Usually i know how to do it already, but im so dam lazy and chatgpt make it correct in at least 60% of the time .. which is better than my fooling around for 10mins …
other times though, weak times, i just copy my complete solution and ask it to find the bug or fix a problem. That only works in 10% (or less) of the times i do it. I need to stop that **** …
0
jarlah
visualization ftw

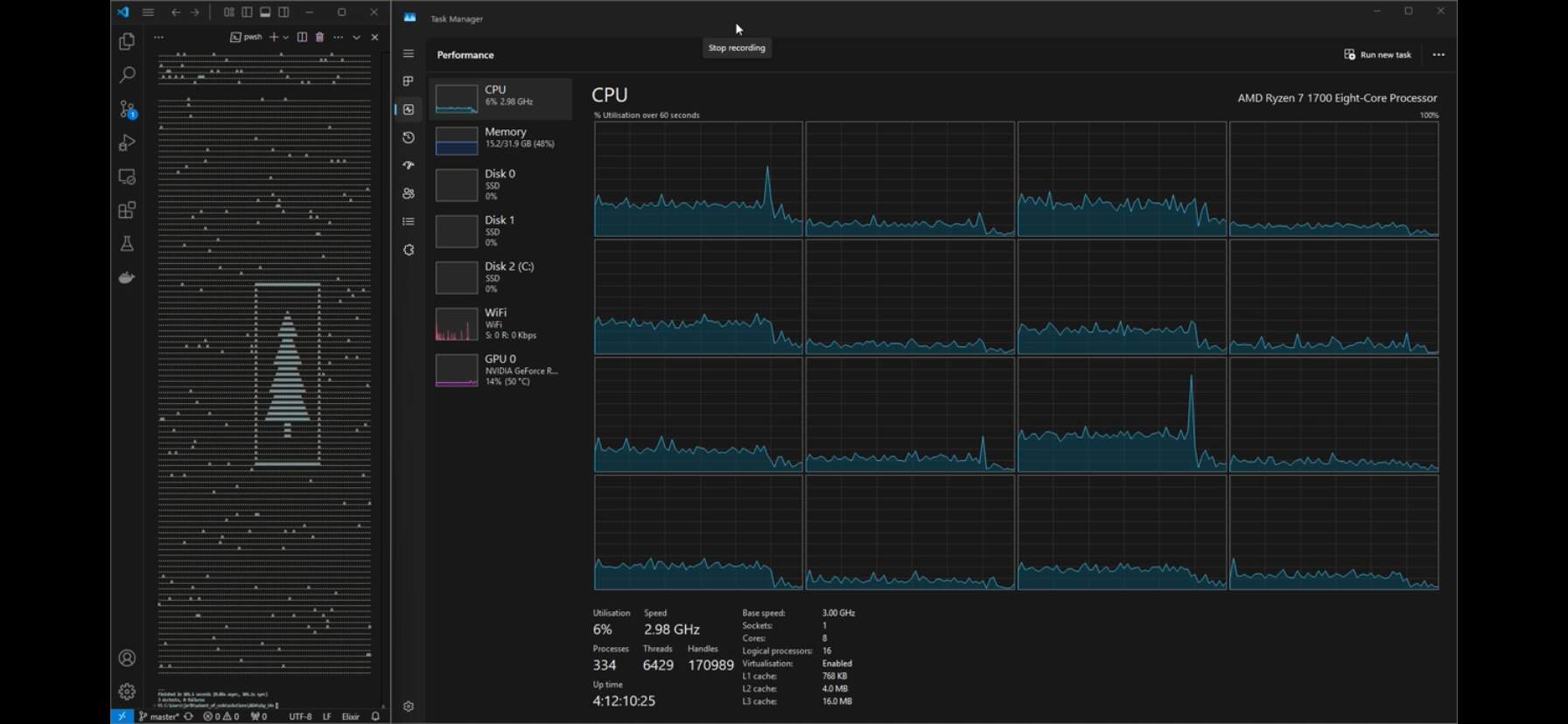

EDIT: recording with resource monitoring i used all 16 logical cores to produce the frames
link (Dropbox)
Final screenshot
Basically just garbled mess before that last frame
actually im pretty happy with the code for part2 .. it uses infinite stream range and uses all of the machines logical cores
https://github.com/jarlah/advent_of_code/blob/master/solutions/2024/day_14/lib/Part2.ex#L14
0
mwilsoncoding
I originally tried searching for clusters of half the bots, but that took waaay too long, even after memoizing.
Checking for a number of bots surrounded by 8 other bots gets something, but not the right answer.
Finally I broke down and implemented the popular solution of looking for a contiguous row of 10 robots:
defmodule Day14.Part2 do
@width 101
@height 103
defp parse(str) do
str
|> String.split("\n", trim: true)
|> Enum.map(&parse_bot/1)
end
defp parse_bot(line) do
Regex.scan(~r/-?\d+,-?\d+/, line)
|> Enum.flat_map(fn [pair] ->
[
String.split(pair, ",")
|> Enum.map(&String.to_integer/1)
|> List.to_tuple()
]
end)
end
defp tick([{p_x, p_y}, {v_x, v_y} = velocity] = _bot) do
[{Integer.mod(p_x + v_x, @width), Integer.mod(p_y + v_y, @height)}, velocity]
end
defp tick([bot | _bots] = bots) when is_list(bot) do
bots
|> Enum.map(&tick/1)
end
defp contiguous?([]), do: true
defp contiguous?([_bot]), do: true
defp contiguous?([[{x, _y}, _v] = _bot, [{n_x, _n_y}, _n_v] = neighbor | bots]) do
x == n_x - 1 and contiguous?([neighbor | bots])
end
defp contains_contiguous_row?(bots, count) when length(bots) < count, do: false
defp contains_contiguous_row?([_bot | bots_t] = bots, count) when length(bots) >= count do
bots
|> Enum.slice(0..(count - 1))
|> contiguous?() or contains_contiguous_row?(bots_t, count)
end
defp tree?(bots) do
{[{_x, min_y}, _v], [{_n_x, max_y}, _n_v]} =
bots
|> Enum.min_max_by(fn [{_x, y}, _vector] -> y end)
Stream.iterate(min_y, &(&1 + 1))
|> Enum.reduce_while(
false,
fn y, false ->
ten_in_a_row? =
bots
|> Stream.filter(fn [{_b_x, b_y}, _v] -> y == b_y end)
|> Enum.sort_by(fn [{x, _y}, _v] -> x end)
|> contains_contiguous_row?(10)
cond do
ten_in_a_row? -> {:halt, true}
y >= max_y -> {:halt, false}
true -> {:cont, false}
end
end
)
end
defp find_tree(bots) do
Stream.iterate(bots, &tick/1)
|> Enum.reduce_while(
0,
fn bots, ticks ->
if tree?(bots) do
{:halt, ticks}
else
{:cont, ticks + 1}
end
end
)
end
def solve() do
File.read!("lib/advent_of_code/year/2024/day/14/input.txt")
|> parse()
|> find_tree()
|> IO.puts()
end
end
0
billylanchantin
I didn’t love this one. I think I prefer when the final condition is unambiguous from the text.
Part 1 was straightforward. Just a single mod calculation.
Part 2 was less straightforward. My approach is to use a sliding 7x7 window. I compute a total image score as the sum of the squares of the number of robots in each window. (This is related to an entropy or variance calculation but it’s not the same). Intuitively, when the robots are spread out randomly, most windows will have roughly the same score. Only when the robots are clustered together will we get higher window scores.
I searched for the image with the max score across all t = 100, 1,000, 10,000 until I found a Christmas tree.
This is not golfed.
defmodule Aoc2024.Day14 do
def part1(file, x_max, y_max) do
robots = file |> File.read!() |> String.split("\n", trim: true) |> Enum.map(&parse_line/1)
x_mid = div(x_max, 2)
y_mid = div(y_max, 2)
t = 100
robots
|> Enum.map(fn {px, py, vx, vy} ->
[Integer.mod(px + vx * t, x_max), Integer.mod(py + vy * t, y_max)]
end)
|> Enum.frequencies_by(fn [x, y] -> [compare(x, x_mid), compare(y, y_mid)] end)
|> Enum.reject(fn {xy, _} -> :eq in xy end)
|> Enum.product_by(fn {_, v} -> v end)
end
def part2(file, x_max, y_max) do
robots = file |> File.read!() |> String.split("\n", trim: true) |> Enum.map(&parse_line/1)
:ets.new(:cache, [:public, :set, :named_table])
grid = for x <- 0..(x_max - 1), y <- 0..(y_max - 1), into: %{}, do: {{x, y}, 0}
:ets.insert(:cache, {:grid, grid})
{s_max, _, image} =
Enum.reduce_while(
Stream.iterate(1, &(&1 + 1)),
{robots, {0, 0, nil}},
fn t, {acc, {t_max, s_max, image}} ->
acc =
Enum.map(acc, fn {px, py, vx, vy} ->
{Integer.mod(px + vx, x_max), Integer.mod(py + vy, y_max), vx, vy}
end)
if t > 10_000 do
{:halt, {t_max, s_max, image}}
else
s = score(acc, x_max, y_max)
if s > s_max do
{t, s} |> dbg
{:cont, {acc, {t, s, acc}}}
else
{:cont, {acc, {t_max, s_max, image}}}
end
end
end
)
print_image(image, x_max, y_max)
s_max
end
@line ~r/p=(\d+),(\d+) v=(-?\d+),(-?\d+)/
def parse_line(line) do
Regex.scan(@line, line, capture: :all_but_first)
|> hd
|> Enum.map(&String.to_integer/1)
|> List.to_tuple()
end
def compare(a, b) when is_integer(a) and is_integer(b) do
cond do
a < b -> :lt
a == b -> :eq
a > b -> :gt
end
end
def score(robots, x_max, y_max) do
[grid: grid] = :ets.lookup(:cache, :grid)
size = 7
s = div(size, 2)
grid =
robots
|> Enum.reduce(grid, fn {x, y, _, _}, acc -> Map.put(acc, {x, y}, 1) end)
for x <- s..(x_max - 1 - s)//size, y <- s..(y_max - 1 - s)//size, reduce: 0 do
sum ->
window_sum =
for(dx <- -s..s, dy <- -s..s, reduce: 0, do: (sum -> sum + grid[{x + dx, y + dy}]))
sum + window_sum ** 2
end
end
def print_image(robots, x_max, y_max) do
[grid: grid] = :ets.lookup(:cache, :grid)
grid =
robots
|> Enum.reduce(grid, fn {x, y, _, _}, acc -> Map.update!(acc, {x, y}, &(&1 + 1)) end)
for y <- 0..(y_max - 1) do
for x <- 0..(x_max - 1) do
v = grid[{x, y}]
if v == 0 do
"."
else
Integer.to_string(v)
end
end
|> Enum.join("")
end
|> Enum.join("\n")
|> IO.puts()
end
end
1
ken-kost
I didn’t want to stumble in the dark for part 2 so I went here for help.
I tried out your approach.
defmodule Aoc2024.Solutions.Y24.Day14 do
alias AoC.Input
@x_max if Mix.env() == :test, do: 11, else: 101
@y_max if Mix.env() == :test, do: 7, else: 103
@tree [{50, 51}, {49, 51}, {51, 51}, {48, 52}, {49, 52}, {50, 52}, {51, 52}, {52, 52}]
def parse(input, _part) do
input
|> Input.stream!(trim: true)
|> Enum.map(fn line ->
~r/-?\d+(\.\d+)?/
|> Regex.scan(line)
|> Enum.reduce({}, fn [e], acc ->
Tuple.append(acc, String.to_integer(e))
end)
end)
end
def part_one(problem) do
{q1, q2, q3, q4} =
problem
|> Enum.map(&move_robot(&1, 100))
|> Enum.filter(fn {x, y, _xv, _yv} -> x != div(@x_max, 2) and y != div(@y_max, 2) end)
|> Enum.reduce({0, 0, 0, 0}, fn {x, y, _xv, _yv}, {q1, q2, q3, q4} ->
cond do
x < div(@x_max, 2) and y < div(@y_max, 2) ->
{q1 + 1, q2, q3, q4}
x < div(@x_max, 2) and y > div(@y_max, 2) ->
{q1, q2 + 1, q3, q4}
x > div(@x_max, 2) and y < div(@y_max, 2) ->
{q1, q2, q3 + 1, q4}
x > div(@x_max, 2) and y > div(@y_max, 2) ->
{q1, q2, q3, q4 + 1}
end
end)
q1 * q2 * q3 * q4
end
def part_two(problem) do
iterate_until(problem, 0)
end
defp iterate_until(robot_positions, solution) do
robot_positions = Enum.map(robot_positions, &move_robot(&1, 1))
positions = Enum.map(robot_positions, fn {x, y, _xv, _yv} -> {x, y} end)
if Enum.all?(@tree, &(&1 in positions)),
do: solution + 1,
else: iterate_until(robot_positions, solution + 1)
end
defp move_robot(solution, 0), do: solution
defp move_robot({x, y, xv, yv}, seconds) do
x = rem(x + xv, @x_max)
x = if x < 0, do: @x_max + x, else: x
y = rem(y + yv, @y_max)
y = if y < 0, do: @y_max + y, else: y
move_robot({x, y, xv, yv}, seconds - 1)
end
end
I got the correct solution with [{50, 51}, {49, 51}, {51, 51}, {48, 52}, {49, 52}, {50, 52}, {51, 52}, {52, 52}] i.e. the middle 3 and under it 5 is the condition and it worked!
1
stevensonmt
Haven’t tried part 2 yet, but I’m very pleased that I got part 1 without any false starts and refactors. I do have a suspicion that were I to try and parallelize some of the logic I’d have problems b/c there are some steps where a function takes a value from an ETS table, then either replaces it or leaves it off the table depending on that value. If another process were to attempt to take the value for the same key before that first process finished I think I’d be in trouble. For this problem it was not an issue.
defmodule Day14 do
alias Day14.{Robot, Board}
@real File.read!(__DIR__ <> "/input.txt") |> String.trim()
@re ~r/p=(\d+),(\d+) v=(-*\d+),(-*\d+)/
def parse(input) do
Regex.scan(@re, input, capture: :all_but_first)
|> Enum.map(fn robot -> Enum.map(robot, &String.to_integer/1) end)
end
def run(input \\ :real, board_x \\ 101, board_y \\ 103)
def run(:real, board_x, board_y), do: run(@real, board_x, board_y)
def run(input, board_x, board_y) do
Robot.init_roster()
Board.new(board_x, board_y)
input
|> parse()
|> Robot.init_bots()
Robot.move_all(100)
Board.search_quadrants() |> safety_factor() |> IO.inspect(label: :part_1)
end
def quit() do
Board.close()
Robot.shut_down_all()
end
defp safety_factor(groups) do
groups
|> Enum.map(fn {k, grp} -> {k, List.flatten(grp)} end)
|> Enum.map(fn {k, grp} -> {k, grp |> Enum.flat_map(fn {_coord, bots} -> bots end)} end)
|> Enum.reduce(1, fn {_, bots}, acc -> acc * length(bots) end)
end
defmodule Robot do
def init_roster() do
:ets.new(:robot_list, [:named_table, :ordered_set])
end
def init_bot(name, [px, py, vx, vy]) do
:ets.insert(:robot_list, {name, %{px: px, py: py, vx: vx, vy: vy}})
if :board not in :ets.all() do
Board.new()
end
Board.add_to_spot(name, px, py)
end
def init_bots(robots) do
robots
|> Stream.with_index()
|> Stream.each(fn {robot, ndx} ->
name = "R2D#{ndx}"
init_bot(name, robot)
end)
|> Stream.run()
end
def shut_down_all() do
:ets.delete(:robot_list)
end
def shut_down_bot(robot) do
:ets.take(:robot_list, robot)
end
def move_all(seconds) do
Stream.iterate(0, &(&1 + 1))
|> Stream.map(fn i -> :ets.slot(:robot_list, i) end)
|> Stream.take_while(fn n -> n != :"$end_of_table" end)
|> Stream.map(fn [{robot, state}] -> move_bot(robot, state, seconds) end)
|> Stream.run()
end
defp move_bot(robot, state, seconds) do
board_x = :ets.lookup_element(:board, :width, 2)
board_y = :ets.lookup_element(:board, :height, 2)
px =
case rem(state.px + state.vx * seconds, board_x) do
n when n >= 0 -> n
n -> board_x + n
end
py =
case rem(state.py + state.vy * seconds, board_y) do
n when n >= 0 -> n
n -> board_y + n
end
Board.remove_from_spot(robot, state.px, state.py)
:ets.update_element(:robot_list, robot, {2, %{state | px: px, py: py}})
Board.add_to_spot(robot, px, py)
end
end
defmodule Board do
def new(x \\ 101, y \\ 103) do
:ets.new(:board, [:named_table, :ordered_set])
:ets.insert(:board, [{:width, x}, {:height, y}])
define_quadrants(x, y)
end
defp define_quadrants(x, y) do
mid_x = div(x, 2)
mid_y = div(y, 2)
quadrants = [
{:nw, {0..(mid_x - 1), 0..(mid_y - 1)}},
{:ne, {(mid_x + 1)..x, 0..(mid_y - 1)}},
{:sw, {0..(mid_x - 1), (mid_y + 1)..y}},
{:se, {(mid_x + 1)..x, (mid_y + 1)..y}}
]
:ets.insert(:board, quadrants)
end
def remove_from_spot(occupant, x, y) do
case :ets.take(:board, {x, y}) do
[{{_x, _y}, [^occupant]}] -> true
[{{^x, ^y}, occupants}] -> :ets.insert(:board, {{x, y}, occupants -- [occupant]})
[] -> true
end
end
def add_to_spot(occupant, x, y) do
case :ets.take(:board, {x, y}) do
[{{x, y}, occupants}] -> :ets.insert(:board, {{x, y}, [occupant | occupants]})
[] -> :ets.insert(:board, {{x, y}, [occupant]})
end
end
def search_quadrants() do
Stream.iterate(0, &(&1 + 1))
|> Stream.map(fn i -> :ets.slot(:board, i) end)
|> Stream.take_while(fn res -> res != :"$end_of_table" end)
|> Stream.filter(fn [{k, _v}] -> k not in [:width, :height, :nw, :sw, :ne, :se] end)
|> Enum.group_by(fn [{{x, y}, _robots}] -> quadrant(x, y) end)
|> Enum.reject(fn {k, _grp} -> k == nil end)
end
defp quadrant(x, y) do
[:nw, :ne, :sw, :se]
|> Enum.find(fn q ->
case :ets.lookup_element(:board, q, 2) do
{x1..x2//_, y1..y2//_} when x1 <= x and x2 >= x and (y1 <= y and y2 >= y) -> true
_ -> false
end
end)
end
def close() do
:ets.delete(:board)
end
end
end
PS Sorry to everyone who moved on two weeks ago. I finally have some time and enjoy the puzzles more than the competition aspect. Hope no one minds the necro bumps of these threads.
PPS I haven’t checked the thread but did people actually implement edge detection and pattern recognition for finding the undefined christmas tree for part 2? I really think I’m just going to make it print the board every second and watch it until I see a tree.
2
adamu
I think you should read the thread before posting, as you are mostly repeating what has already been said… Maybe that’s the nature of AoC though, everyone wants to share their code/experience, which is likely similar since we’re all doing the same puzzle.
1
al2o3cr
The “safety factor” from part 1 was sufficient for my case - it had a significantly lower value for the “Christmas tree” pattern than for the random messes on either side.
1
stevensonmt
Do you mean my comment about part 2 is repeating what has been said or do you mean generally my solutions across the threads are not unique or interesting because of how similar they are to other solutions? If the latter I think that’s a bit uncharitable. As you said most of the time the puzzles have a fairly clear method of solving and the individual implementations will tend to coalesce around that method. That said, I think the slight differences are potentially helpful for historical reference as people consulting these threads from Google searches in the future may learn different tools Elixir provides that they were not aware of. For instance, at least for this day’s puzzle my solution to part 1 is logically identical to almost every other solution because it is a very straight forward math problem. I think my solution has value, however, as I chose to (unnecessarily) set up the problem in what I think of as a more BEAM-ish approach to managing state. I hope that future readers find that helpful.
0
