I got the LED’s working. The address detection is not a standard so not always supported. Looks like that is the case here for the SN3218 in this setup. But I was able to write to the address and it was a matter of understanding the flow of how it expects to turn on.
You can dump this in IEx and get a little LED spin action with random colors:
{:ok, i2c} = Circuits.I2C.open("i2c-1")
# Docs say this should be 0xA8 (0b10101000), but the python uses
# this address and it works, so ¯\_(ツ)_/¯
addr = 0x54
# Enable LED control
Circuits.I2C.write(i2c, addr, <<0, 1>>)
# I don't know where the LED's are in this control register, so just turn
# them all on - #yolo
Circuits.I2C.write(i2c, addr, <<0x13, 255>>)
Circuits.I2C.write(i2c, addr, <<0x14, 255>>)
Circuits.I2C.write(i2c, addr, <<0x15, 255>>)
loop = fn l ->
# SN3218 supports 18 LEDs. The Trilobot seems to have 6 RGB leds with
# each color gamma tied to a single PWM LED register, effectively
# making the LED control triads of 3 register addresses
#
# | LED | Red register | Blue register | Green register |
# | ------------------ | ------------ | ------------- | -------------- |
# | LIGHT_FRONT_RIGHT | 1 | 2 | 3 |
# | LIGHT_FRONT_LEFT | 4 | 5 | 6 |
# | LIGHT_MIDDLE_LEFT | 7 | 8 | 9 |
# | LIGHT_REAR_LEFT | 10 | 11 | 12 |
# | LIGHT_REAR_RIGHT | 13 | 14 | 15 |
# | LIGHT_MIDDLE_RIGHT | 16 | 17 | 18 |
for led <- 1..6 do
# SN3218 has auto incrementing register addresses. This just means
# we calculate the first register (red) and then write 3 bytes which
# will write 1 byte to the 3 registers, starting with the initial (red)
reg = led * 3
rgb = for _ <- 1..3, do: Enum.random(0..255)
# Adjust the PWM for each RGB of LED N
Circuits.I2C.write(i2c, addr, [reg | rgb])
# Apply all the settings
Circuits.I2C.write(i2c, addr, <<0x16, 1>>)

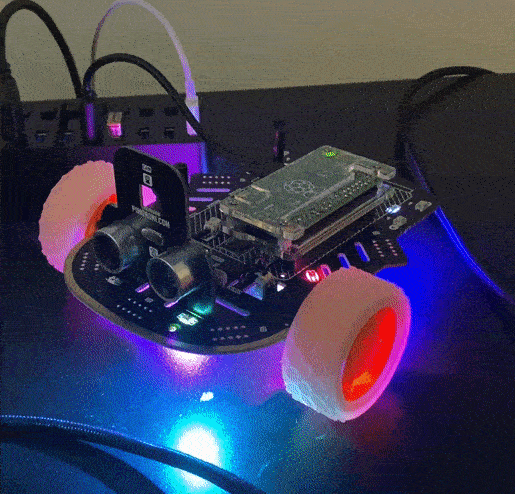

# Little sleep gives a rotating effect on trilobot
:timer.sleep(100)
end
l.(l)
end
# Don't block our IEx
led_spin = spawn fn -> loop.(loop) end
