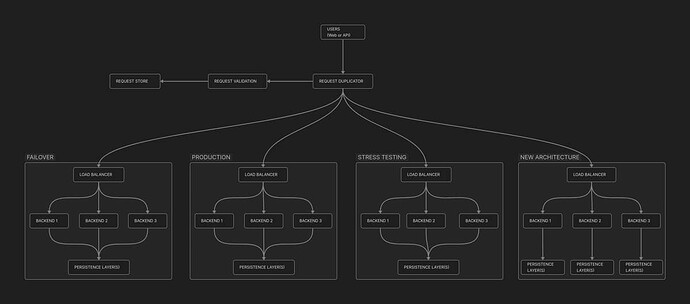

beam-devs-architecture1200×529 24.8 KB

In my first two UK roles, software architecture always included a failover system, an independent, exact copy of production running in another cloud or on-premises data center. This differs from redundancy within the same provider.

In this approach, the switch from production to the failover happens by manually switching the IP for the server in the DNS, which has a very short TTL. In the case the cloud provider is having an outage/issues or a catastrophic production incident that is not easy to solve immediately or roll back effortlessly, we can switch the DNS and use the failover system, or having clients switch automatically to the failover when production doesn’t respond after a certain timeout.

Fail-over not the same as Blue-Green Deployments. While a blue-green deployment gradually replaces an older version, failover runs continuously alongside production. Ideally, both strategies should be used together when possible.

In my second role, we also implemented a request duplicator. This tool allowed stress testing of new releases by amplifying live requests (e.g., x2, x4) to find breaking points. It also helped validate major architecture changes before going live by running them in parallel with production.

The request duplicator only relied on production responses but on my case it could be coded to consider the first response from production or failover. For strong consistency guarantees, it could wait for both before returning a response, backed by a TTL and a request failure-handling strategy.

Key Consideration: Applications using this approach must ensure side effects (e.g., emails, billing) only occur in production. A flag-based system is required to enforce this.

Bear in mind that I wasn’t in the DevOps team, nor did I have input on the architecture. Thus, the diagram is trying to reflect what I was aware of and can recall.

I am thinking of also using this approach for BEAM Devs, as per the diagram image. However, in my case, I have a CRUD application from the user perspective, whereas in my previous roles, they were read-only for external users and CRUD internally based on background jobs or request metadata collection and analytics.

As with everything in software architecture, it’s about trade-offs. Thus, this will have some, like added complexity to ensure no side effects occur in the non-production systems and to guarantee that both production and failover are in the same state (strong consistency).

So, my challenge is to be able to use the failover and request duplicator approach in conjunction with blue-green deployments and keep strong consistency guarantees for my CRUD application.

I could start with a non-distributed traditional Phoenix app, but I want to use this project as an opportunity to use distribution for real, and to start with a good base for building a very resilient architecture.

What would you do differently?

Feel free to ask any questions.
