Intellij + elixirplugin + elixir in dockerfile (it works)

Edit: I’ll create a github project in a couple of days and update this message when I’m done.
Succeeded. Below the pick the dockerfile + some more. If you see an improvement please let me know. I want to add it to github and update this project https://github.com/StefanHoutzager/elixir-dev-anywhere-docker

Dockerfile:

FROM ubuntu:16.04
MAINTAINER Stefan Houtzager "stefan.houtzager@gmail.com"

ENV DEBIAN_FRONTEND noninteractive
ENV DEBCONF_NONINTERACTIVE_SEEN true
RUN locale-gen en_US.UTF-8
ENV LANG en_US.UTF-8
ENV LANGUAGE en_US:en
ENV LC_ALL en_US.UTF-8
ENV TERM xterm

RUN sed 's/main$/main universe/' -i /etc/apt/sources.list && \
    apt-get update -qq && \
    echo 'Installing OS dependencies' && \
    apt-get install -qq -y --fix-missing sudo software-properties-common git libxext-dev libxrender-dev libxslt1.1 \
        libxtst-dev libgtk2.0-0 libcanberra-gtk-module curl git unzip wget && \
    echo 'Cleaning up' && \
    apt-get clean -qq -y && \
    apt-get autoclean -qq -y && \
    apt-get autoremove -qq -y &&  \
    rm -rf /var/lib/apt/lists/* && \
    rm -rf /tmp/*

RUN echo 'Creating user: developer' && \
    mkdir -p /home/developer && \
    echo "developer:x:1000:1000:Developer,,,:/home/developer:/bin/bash" >> /etc/passwd && \
    echo "developer:x:1000:" >> /etc/group && \
    sudo echo "developer ALL=(ALL) NOPASSWD: ALL" > /etc/sudoers.d/developer && \

    sudo chmod 0440 /etc/sudoers.d/developer && \
    sudo chown developer:developer -R /home/developer && \
    sudo chown root:root /usr/bin/sudo && \
    chmod 4755 /usr/bin/sudo

RUN mkdir -p /home/developer/.IdeaIC2016.2/config/options && \
    mkdir -p /home/developer/.IdeaIC2016.2/config/plugins

ADD ./jdk.table.xml /home/developer/.IdeaIC2016.2/config/options/jdk.table.xml
ADD ./jdk.table.xml /home/developer/.jdk.table.xml
ADD ./run /usr/local/bin/intellij
ADD ./intellij-elixir.zip /home/developer/.IdeaIC2016.2/config/plugins/intellij-elixir.zip

RUN chmod +x /usr/local/bin/intellij && \
    chown developer:developer -R /home/developer/.IdeaIC2016.2

RUN echo 'Downloading IntelliJ IDEA' && \
    wget https://download.jetbrains.com/idea/ideaIC-2016.2.tar.gz -O /tmp/intellij.tar.gz -q && \
    echo 'Installing IntelliJ IDEA' && \
    mkdir -p /opt/intellij && \
    tar -xf /tmp/intellij.tar.gz --strip-components=1 -C /opt/intellij && \
    rm /tmp/intellij.tar.gz

RUN echo 'Installing Elixir plugin' && \
    cd /home/developer/.IdeaIC2016.2/config/plugins/ && \
    unzip -q intellij-elixir.zip && \
    rm intellij-elixir.zip

RUN echo 'Installing Markdown plugin' && \
    wget https://plugins.jetbrains.com/files/7793/25156/markdown-2016.1.20160405.zip -O markdown.zip -q && \
    unzip -q markdown.zip && \
    rm markdown.zip

RUN sudo chown developer:developer -R /home/developer

WORKDIR /

# erlang install
RUN echo "deb http://packages.erlang-solutions.com/ubuntu trusty contrib" >> /etc/apt/sources.list && \
    apt-key adv --fetch-keys http://packages.erlang-solutions.com/ubuntu/erlang_solutions.asc && \
    apt-get -qq update && apt-get install -y \
    esl-erlang \
    build-essential \
    wget && \
    apt-get clean && rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/*

# Download and Install Specific Version of Elixir
WORKDIR /elixir
RUN wget -q https://github.com/elixir-lang/elixir/releases/download/v1.3.2/Precompiled.zip && \
    unzip Precompiled.zip && \
    rm -f Precompiled.zip && \
    ln -s /elixir/bin/elixirc /usr/local/bin/elixirc && \
    ln -s /elixir/bin/elixir /usr/local/bin/elixir && \
    ln -s /elixir/bin/mix /usr/local/bin/mix && \
    ln -s /elixir/bin/iex /usr/local/bin/iex

WORKDIR /

# install Node.js (>= 5.0.0) and NPM in order to satisfy brunch.io dependencies
RUN curl -sL https://deb.nodesource.com/setup_6.x | bash - && apt-get -y install nodejs inotify-tools

# install phoenix
RUN mix archive.install https://github.com/phoenixframework/archives/raw//master/phoenix_new.ez --force

USER developer
ENV HOME /home/developer
ENV PATH $PATH:/home/developer/elixir/bin:/usr/local/elixir/bin
WORKDIR /home/developer/elixir
CMD /usr/local/bin/intellij

jdk.table.xml:

<application>
  <component name="ProjectJdkTable">
    <jdk version="2">
      <name value="Elixir 1.3" />
      <type value="Elixir SDK" />
      <version value="1.3" />
      <homePath value="/usr/local/bin/elixir" />
      <roots>
        <annotationsPath>
          <root type="composite" />
        </annotationsPath>
        <classPath>
          <root type="composite">
            <root type="simple" url="file:///usr/local/bin" />
          </root>
        </classPath>
        <javadocPath>
          <root type="composite" />
        </javadocPath>
        <sourcePath>
          <root type="composite">
            <root type="simple" url="file:///usr/local/bin" />
          </root>
        </sourcePath>
      </roots>
      <additional />
    </jdk>
  </component>
</application>

run:

#!/usr/bin/env bash

function delayedPluginInstall {
    sudo mkdir -p /home/developer/.IdeaIC2016.2/config/plugins
    sudo mkdir -p /home/developer/.IdeaIC2016.2/config/options
    sudo chown developer:developer -R /home/developer/.IdeaIC2016.2

    cd /home/developer/.IdeaIC2016.2/config/plugins/

    echo 'Installing Markdown support plugin'
    wget https://plugins.jetbrains.com/files/7793/25156/markdown-2016.1.20160405.zip -O markdown.zip -q && unzip -q markdown.zip && rm markdown.zip

}

if [ ! -d /home/developer/.IdeaIC2016.2/config/plugins/intellij-elixir ]; then
    # We are running with a non-Docker contained volume for IntelliJ prefs so we need to setup the plugin again
    delayedPluginInstall
fi

if [ -d /home/developer/.IdeaIC2016.2 ]; then
    # Ensure proper permissions
    sudo chown developer:developer -R /home/developer/.IdeaIC2016.2
fi

exec /opt/intellij/bin/idea.sh

intellij-elixir.zip:

download it from https://github.com/KronicDeth/intellij-elixir/releases

make connection to the X11 server possible by f.e. adding
xhost +local:all
to your .bashrc

start the container with (use your own datavolume instead of stefan and your own imagename instead of stefan/intellij)
sudo docker run -ti --rm --net=“host” --privileged=true -e DISPLAY=${DISPLAY} -v /var/lib/docker/volumes/stefancontainer/_data:/stefan -v /tmp/.X11-unix:/tmp/.X11-unix -v ${HOME}/.IdeaIC2016.1_docker:/home/developer/.IdeaIC2016.1 stefan/intellij

If you want to use a postgres container you can take this docker-compose.yml as an example:

version: '2'

services:
  web:
    image: stefan/intellij
    environment:
      DATABASE_URL: postgres://bpmdemo:bpmdemo@db/bpmdemo
      PORT: 5432
      MIX_ENV: "dev"
      DISPLAY: $DISPLAY
    links:
      - postgres
    ports:
      - 4000:4000
      - 6080:6080
    volumes:
      - /var/lib/docker/volumes/stefancontainer/_data:/stefan
      - /tmp/.X11-unix:/tmp/.X11-unix
      - $HOME/.IdeaIC2016.1_docker:/home/developer/.IdeaIC2016.1
    stdin_open: true
    privileged: true
  postgres:
    image: postgres
    environment:
      LC_ALL: C.UTF-8
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: postgres
    volumes:
      - "db-data-bpmdemo:/var/lib/postgresql/data"
volumes:
  stefan:
  db-data-bpmdemo:
2 Likes

Hallo @StefanHoutzager, I took the freedom to edit your post and correct the markdown at the places where it was obvious to me (fenced codeblocks). Please take another look at it and recorrect if necessary. Also you might need to alter the part between run and docker-compose.yml, I wasn’t sure about the structure there.

Also I would be very happy if you would provide a better explanation about what this is about?

1 Like

Hi Norbert,

Thanks for the edit, it looks ok. With the dockerfile you can create a docker image with erlang, elixir, phoenix, node.js, pgadmin, intellij and the elixir plugin installed. If you download the postgres image (https://hub.docker.com/_/postgres/) and use docker-compose you can connect the two images with docker-compose up -d. The images you can use to set up a development environment in linux, provided that docker and docker-compose are installed. It simplifies installation / deinstallation (to de-install, just dump the images). When I succeed integratiing this with my https://github.com/StefanHoutzager/elixir-dev-anywhere-docker project you can develop remote in a browser also (see the explanation on github) using intellij in the browser. If you want to know more drop me a line.

Regards, Stefan.

Sounds interesting, especially the “in browser” part, as I am currently forced to use windows as my main system and rebooting to linux when I want to do just such a little change is a PITA, and so often it is the cause why my private projects pass away unnoticed :frowning:

I will notify you here when it works & github is updated. Thanks for your interest! Btw the existing project works, but it misses the intellij part.

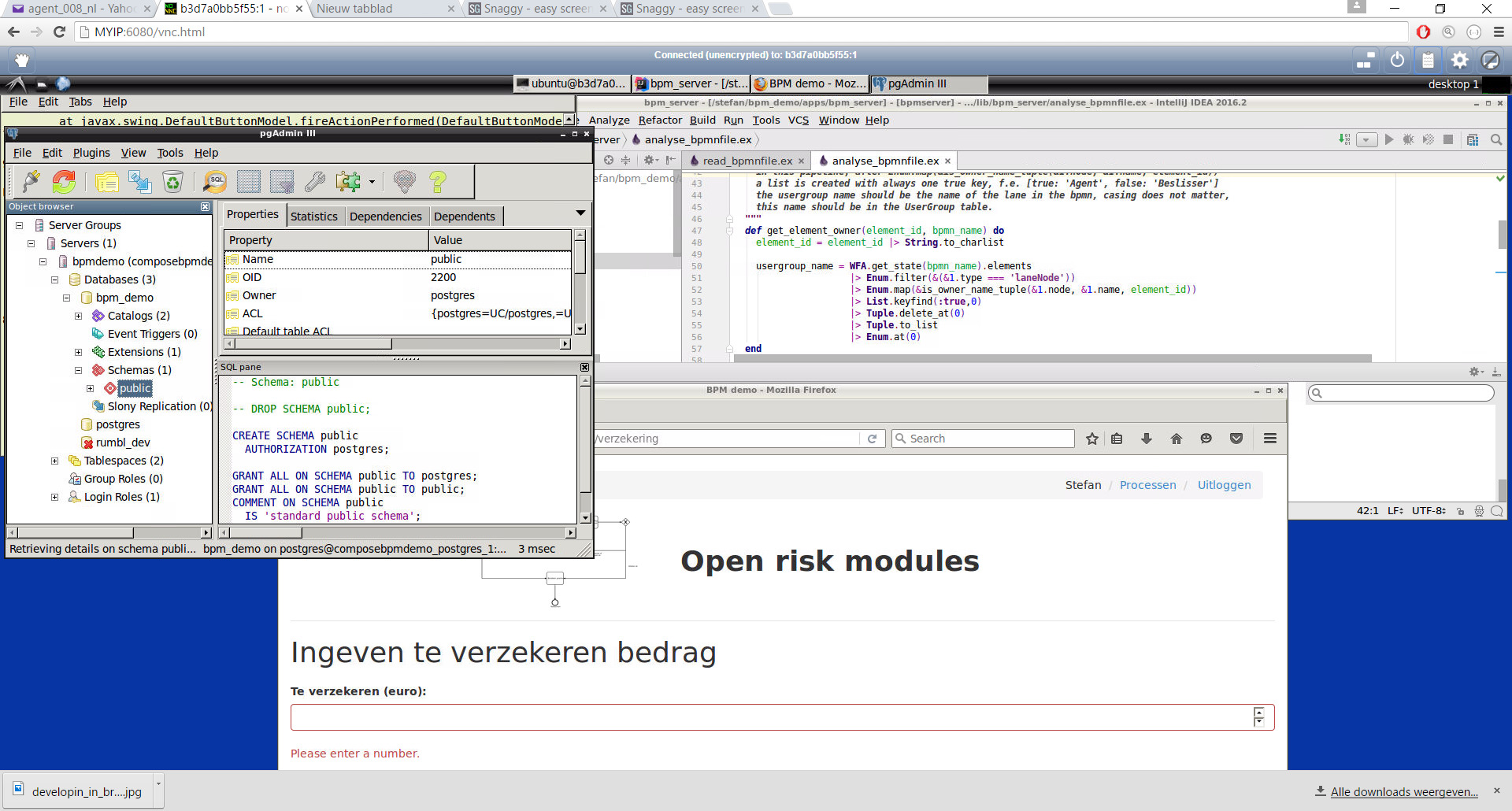

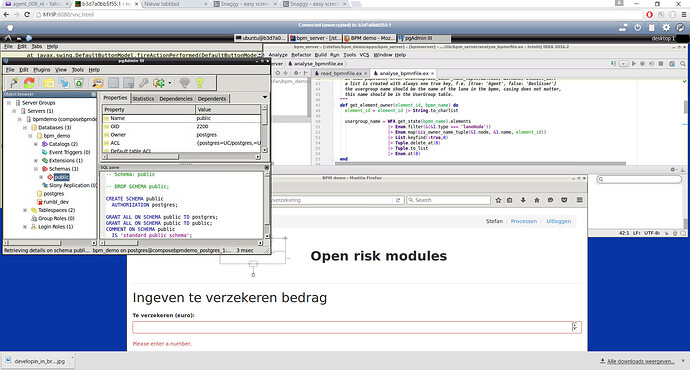

Succeeded, intellij works in the browser, you can develop remote with elixir and intellij now. I’ll clean up some code and update my github project soon, I’ll be in touch again.

2 Likes
