Datatables like data entry with LiveView

[CessK]

Hello Everyone,

I have a question about table like data entry. And to make it as smooth as possible for the end user to add, edit and remove rows.

In previous projects i have done i have used Jquery data tables with a C# backed.

This worked very well. However i am unable to find something similar.

I have googled around and the best i could find was a 2 year old library:

Exzeitable - Dynamic Datatables with LiveView

Exzeitable - Dynamic Datatables with LiveView Hello! This is my first library, I needed something fancier than a plain table and wanted to try my hand at creating something that might be of use to others. You provide it with a query and use Exzeitable in a module and some configuration, then call that module in a template. This provides you with a datatable that can be dynamically searched, sorted, and have its columns shown and hidden. It depends on Phoenix, Ecto, Postgres, and LiveView. I …

I think Live View is the way to go here to implement something similar.

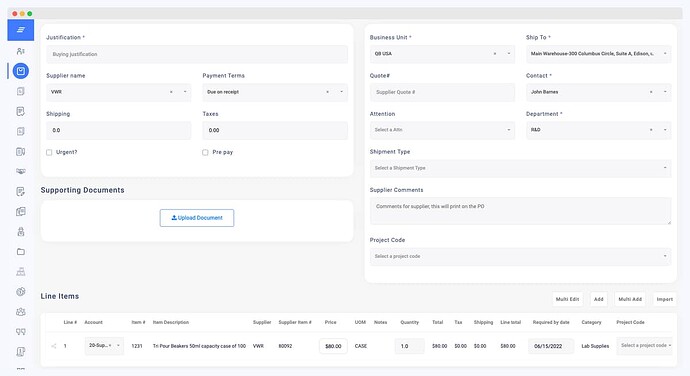

The use case for this would be something like a Purchase Order.

I have the main Purchase Order information and a table for the items. I would like to be able to add, update or remove items from this table.

And then able to submit a form to the _live.ex to save them as 1 object.

If there is something like this I would love to hear it as google has failed me on this.

Thanks for any information in advance!

[mmmrrr]

Hey @CessK!

I’m still a little confused as to what you want to achieve: do you simply have a “form” that contains a table with item information that can be updated? Then I think this should be trivial in LiveView.

Exzeitable is, as far as I understand it, for another usecase though: you have a long list of stuff you want the user to filter, sort and search. For this exzeitable looks fantastic. It doesn’t seem to be intended for editing data.

So in the end: the implementation depends on your exact set of requirements. You could also simply use the mentioned jquery library and implement the process without LiveView if you wanted to, but again: it depends.

Could you give us a little more details of what exactly you want to achieve? Then it would be simpler to formulate specific advice.

---

As an aside: In Elixir it often doesn’t matter that libraries seem to be “abandoned” since they are simply done. Additionally, in this particular case, the last commit is from two days ago

[CessK]

Hello @mmmrrr

After some trail and error i came to the following but i feel like the multiple form way is a bit weird.

Currently i am doing for general master data. like units or sizes.

def render(assigns) do
    ~H"""
    <div class="mx-auto max-w-2xl">
      <.header class="text-center">Sizes</.header>
      <div class="flex justify-between">
      <.button phx-click="add_row" class="mb-2 mt-2">Add Row</.button>
      <.button phx-click="saveall" class="mb-2 mt-2">Save</.button>

      </div>
      <div class="flex w-full">
        <div class="w-[30%] border-b pb-1 ps-3">Sort</div>
        <div class="w-[30%] border-b pb-1 ps-3">Code</div>
        <div class="w-[30%] border-b pb-1 ps-3">Name</div>
        <div class="w-[9%] border-b pb-1"></div>
      </div>
      <%= for row <- @data do %>
        <div class="flex w-full gap-2 p-2 border-b">
          <form phx-change="update_row" class="w-[30%]">
            <input type="hidden" name="row_id" value={row.hiddenId} />
            <input type="hidden" name="field" value="sort" />
            <.input type="text" name="value" value={row.sort}/>
            <%= if row.errors[:sort] do %>
              <span class="text-red-500"><%= row.errors[:sort] %></span>
            <% end %>
          </form>

          <form phx-change="update_row" class="w-[30%]">
            <input type="hidden" name="row_id" value={row.hiddenId} />
            <input type="hidden" name="field" value="code" />
            <.input type="text" name="value" value={row.code}/>
            <%= if row.errors[:code] do %>
              <span class="text-red-500"><%= row.errors[:code] %></span>
            <% end %>
          </form>

          <form phx-change="update_row" class="w-[30%]">
            <input type="hidden" name="row_id" value={row.hiddenId} />
            <input type="hidden" name="field" value="name" />
            <.input type="text" name="value" value={row.name}/>
            <%= if row.errors[:name] do %>
              <span class="text-red-500"><%= row.errors[:name] %></span>
            <% end %>
          </form>
          <button phx-click="delete_row" phx-value-row_id={row.hiddenId} class="w-[9%] border border-red-500 rounded-lg text-red-500 flex mt-2 justify-center items-center hover:text-white hover:bg-red-500">
            <svg xmlns="http://www.w3.org/2000/svg" fill="none" viewBox="0 0 24 24" stroke-width="1.5" stroke="currentColor" class="size-6">
              <path stroke-linecap="round" stroke-linejoin="round" d="m14.74 9-.346 9m-4.788 0L9.26 9m9.968-3.21c.342.052.682.107 1.022.166m-1.022-.165L18.16 19.673a2.25 2.25 0 0 1-2.244 2.077H8.084a2.25 2.25 0 0 1-2.244-2.077L4.772 5.79m14.456 0a48.108 48.108 0 0 0-3.478-.397m-12 .562c.34-.059.68-.114 1.022-.165m0 0a48.11 48.11 0 0 1 3.478-.397m7.5 0v-.916c0-1.18-.91-2.164-2.09-2.201a51.964 51.964 0 0 0-3.32 0c-1.18.037-2.09 1.022-2.09 2.201v.916m7.5 0a48.667 48.667 0 0 0-7.5 0" />
            </svg>
          </button>
        </div>
      <% end %>
      <div class="flex justify-between">
      <.button phx-click="add_row" class="mb-2 mt-2">Add Row</.button>
      <.button phx-click="saveall" class="mb-2 mt-2">Save</.button>

      </div>
    </div>
    """
  end

then i handle all the events for a given “row” as follows

def mount(_params, _session, socket) do
    master_data_sizes = load_data()

    # Assign columns and formatted data to the socket
    socket = assign(socket, data: master_data_sizes)

    {:ok, socket}
  end

  def handle_event("add_row", _params, socket) do
    updated_data = add_row(socket.assigns.data)
    {:noreply, assign(socket, :data, updated_data)}
  end

  def handle_event("update_row", %{"row_id" => row_id, "field" => field, "value" => value}, socket) do
    updated_data = update_data(socket.assigns.data, row_id, field, value)
    {:noreply, assign(socket, :data, updated_data)}
  end

  def handle_event("delete_row", %{"row_id" => row_id}, socket) do
    updated_data = delete_row(socket.assigns.data, row_id)
    {:noreply, assign(socket, :data, updated_data)}
  end

  def handle_event("saveall", _params, socket) do
    case save_all(socket.assigns.data) do
      :ok ->
        socket = socket |> assign(:data, load_data()) |> put_flash(:info, "Masterdata list saved!")
        {:noreply, socket}
      {:error, updated_data} ->
        socket = socket |> assign(:data, updated_data) |> put_flash(:error, "One or more entries are invalid.")
         {:noreply, socket}
    end
  end

  defp add_row(data) do
    max_hidden_id =
      data
      |> Enum.map(&Map.get(&1, :hiddenId))
      |> Enum.max(fn -> 0 end)  # Use 0 as the default value if there are no rows

    new_row = %{
      id: nil,
      hiddenId: max_hidden_id + 1,
      sort: "",
      code: "",
      name: "",
      errors: %{}
    }
    data ++ [new_row]
  end

  defp update_data(data, row_id, field, value) do
    Enum.map(data, fn row ->
      if Integer.to_string(row.hiddenId) == row_id do
        updated_row = Map.put(row, String.to_existing_atom(field), value)
        changeset = if updated_row.id do MasterDataSizes.changeset(%MasterDataSizes{}, Map.from_struct(updated_row)) else MasterDataSizes.changeset(%MasterDataSizes{}, updated_row) end
        errors = if changeset.valid?, do: %{}, else: Ecto.Changeset.traverse_errors(changeset, &translate_error/1)
        Map.put(updated_row, :errors, errors)
      else
        row
      end
    end)
  end

  defp delete_row(data, row_id) do
    Enum.reject(data, fn row -> row.id == String.to_integer(row_id) end)
  end
  defp save_all(data) do
    db_data = Repo.all(MasterDataSizes)
    data_map = Map.new(data, fn row -> {row.id, row} end)
    db_map = Map.new(db_data, fn row -> {row.id, row} end)

    updated_data = Enum.map(data, fn row ->
      changeset = if Map.has_key?(db_map, row.id) do
        existing_record = Map.get(db_map, row.id)
         MasterDataSizes.changeset(existing_record, Map.from_struct(row))
        else
          MasterDataSizes.changeset(%MasterDataSizes{}, row)
       end
      if changeset.valid? do
        if Map.has_key?(db_map, row.id) do
          Repo.update!(changeset)
        else
          Repo.insert!(changeset)
        end
        Map.put(row, :errors, %{})
      else
        errors = Ecto.Changeset.traverse_errors(changeset, &translate_error/1)
        Map.put(row, :errors, errors)
      end
    end)

    # Delete rows not present in data
    Enum.each(db_data, fn row ->
      unless Map.has_key?(data_map, row.id) do
        Repo.delete!(row)
      end
    end)

    if Enum.any?(updated_data, &(&1.errors != %{})) do
      {:error, updated_data}
    else
      :ok
    end
  end

  defp load_data do
    MasterDataSizesService.list()
    |> Enum.map(fn item ->
      item
      |> Map.put(:errors, %{})
      |> Map.put(:hiddenId, item.id)
    end)
  end

This worked but i feel like I am doing things wrong.

In the future i will have a structure as follows:

{
   PurchaseOrderNumber: "PO0001",
   etc...
  items: [
   {
     productno: "Product1"
   }
  ]
}

I would like to have a table to handle the items on my page to be done in a table like format:

I hope that clarifies what i am trying to do. I was hoping to do something similar to what i achieved with my master data page on a purchase order page.

[mmmrrr]

Understood! So your datastructure has the order information embedded as an array, so you’ll only have one changeset and the information is ephemeral and shouldn’t be persisted, correct?

In that case, I would probably use a single form around the table, so that I can still use the error tracking provided by the Ecto/LiveView integration. Then it comes down to something like this: How to use a list of items (array) with LiveView form

But in principle your implementation would also work

[CessK]

How would that work for table and in my example a list of change sets on a table?

That part is not very clear to me yet and the key point that I am missing.

[mmmrrr]

I’ll try to throw together a demo later today, if no one beats me to it

The key point is: you would only have one changeset. Your schema would contain an embedded schema which can also be used for validation.

The other option would be to persist every entry of the table to the database in which case every row would be a form (something like the edit form popover that gets generated when using the phx.gen.live tool, just inside of the table listing). But this is not what you want to achieve, if I’m understanding it correctly.

[mmmrrr]

So I just bootstrapped a new project called Example and generated a new resource: mix phx.gen.live Billing Order orders title:string positions:array:map based on the assumption, that you want an embedded list of positions inside of your data schema.

Next you need to adjust the data model. This should always be your guiding principle: Model first!

# This is the generated model
defmodule Example.Billing.Order do
  use Ecto.Schema
  import Ecto.Changeset

  schema "orders" do
    # This has been changed from the generated schema
    embeds_many :positions, Example.Billing.Position, on_replace: :delete
    field :title, :string

    timestamps(type: :utc_datetime)
  end

  @doc false
  def changeset(order, attrs) do
    order
    |> cast(attrs, [:title])
    # This is important for ecto to know how to cast the embed
    |> cast_embed(:positions, with: &Example.Billing.Position.changeset/2)
    |> validate_required([:title])
  end
end

# This is something I added. This should contain the fields of your "table row".
defmodule Example.Billing.Position do
  use Ecto.Schema
  import Ecto.Changeset

  embedded_schema do
    field :product_name, :string
    field :quantity, :integer
  end

  # The embedded schema can have a separate changeset definition
  # This is cool, since it enables you to still get the error highlights
  # inside the live view form
  def changeset(schema, attrs) do
    schema
    |> cast(attrs, [:product_name, :quantity])
    |> validate_required([:product_name, :quantity])
    |> validate_number(:quantity, greater_than: 0)
  end
end

Then you’ll need to adjust the generated form component (of course this doesn’t have to be in a modal, I simply kept it that way for ease of implementation:

defmodule ExampleWeb.OrderLive.FormComponent do
  use ExampleWeb, :live_component

  alias Example.Billing

  @impl true
  def render(assigns) do
    ~H"""
    <div>
      <.header>
        <%= @title %>
        <:subtitle>Use this form to manage order records in your database.</:subtitle>
      </.header>

      <.simple_form
        for={@form}
        id="order-form"
        phx-target={@myself}
        phx-change="validate"
        phx-submit="save"
      >
        <.input field={@form[:title]} type="text" label="Title" />

        <%!-- This  is the important bit --%>
        <fieldset class="flex flex-col gap-2">
          <legend class="font-bold">Order positions</legend>
          <%!-- Now we loop over the embedded positions. --%>
          <.inputs_for :let={f_line} field={@form[:positions]}>
            <.order_position f_line={f_line} />
          </.inputs_for>

          <.button class="mt-2" type="button" phx-click="add-position" phx-target={@myself}>
            Add
          </.button>
        </fieldset>

        <:actions>
          <.button phx-disable-with="Saving...">Save Order</.button>
        </:actions>
      </.simple_form>
    </div>
    """
  end

  def order_position(assigns) do
    ~H"""
    <div>
      <div class="flex gap-5 items-end">
        <div class="grow">
          <.input class="mt-0" field={@f_line[:product_name]} label="Product name" />
        </div>
        <div class="grow">
          <.input class="mt-0" field={@f_line[:quantity]} type="number" label="Quantity" />
        </div>
      </div>
    </div>
    """
  end

  @impl true
  def update(%{order: order} = assigns, socket) do
    {:ok,
     socket
     |> assign(assigns)
     |> assign_new(:form, fn ->
       to_form(Billing.change_order(order))
     end)}
  end

  @impl true
  def handle_event("validate", %{"order" => order_params}, socket) do
    changeset = Billing.change_order(socket.assigns.order, order_params)
    {:noreply, assign(socket, form: to_form(changeset, action: :validate))}
  end

  def handle_event("save", %{"order" => order_params}, socket) do
    save_order(socket, socket.assigns.action, order_params)
  end

  #
  # Add the event handler to update the form with the embedded
  #
  @impl true
  def handle_event("add-position", _, socket) do
    socket =
      update(socket, :form, fn %{source: changeset} ->
        existing = Ecto.Changeset.get_embed(changeset, :positions)
        changeset = Ecto.Changeset.put_embed(changeset, :positions, existing ++ [%{}])
        to_form(changeset)
      end)

    {:noreply, socket}
  end

  defp save_order(socket, :edit, order_params) do
    case Billing.update_order(socket.assigns.order, order_params) do
      {:ok, order} ->
        notify_parent({:saved, order})

        {:noreply,
         socket
         |> put_flash(:info, "Order updated successfully")
         |> push_patch(to: socket.assigns.patch)}

      {:error, %Ecto.Changeset{} = changeset} ->
        {:noreply, assign(socket, form: to_form(changeset))}
    end
  end

  defp save_order(socket, :new, order_params) do
    case Billing.create_order(order_params) do
      {:ok, order} ->
        notify_parent({:saved, order})

        {:noreply,
         socket
         |> put_flash(:info, "Order created successfully")
         |> push_patch(to: socket.assigns.patch)}

      {:error, %Ecto.Changeset{} = changeset} ->
        {:noreply, assign(socket, form: to_form(changeset))}
    end
  end

  defp notify_parent(msg), do: send(self(), {__MODULE__, msg})
end

I hope this helps you to grok the connection between schema, changeset and form a little better.

[CessK]

@mmmrrr Ahh yes now i understand how it all fits together

<%!-- This  is the important bit --%>
<fieldset class="flex flex-col gap-2">

I see now how you used field set to do the same thing i did with multiple forms.

This will help me out greatly. Thank you for the time to write this out.
