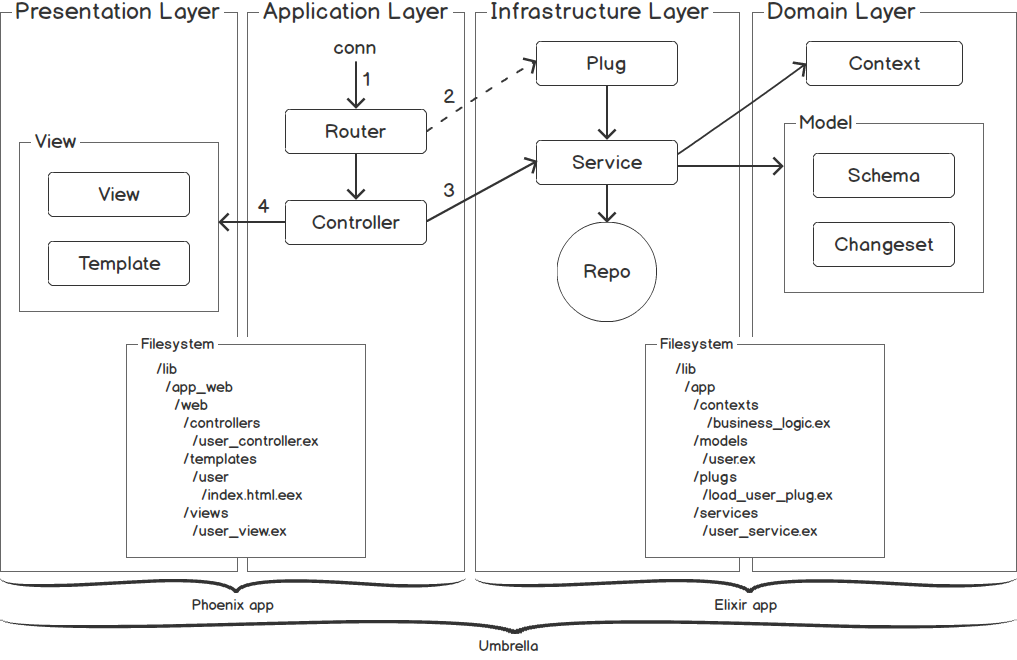

Domain Driven Design diagram for Umbrella app

Well, I have a very close setup to yours, the only difference is the “infrastructure layer” you have and I don’t. In my case, the plugs stay on the application layer (because they have web specific logic, like session control and etc), and the service and the repo go to the domain layer, which does not have any kind of web logic, just business logic.

I’m happy with my structure for now, and it’s a pretty clear separation of concerns. My next step, I guess, is to separate the domain layer in more pieces, by resources and features and not by a specific layer itself. Something I learned with CBRA (Component Based Rails Applications) your application is a big box, and big boxes tend to become a mess if you don’t separate into mor boxes, and label them correctly.

Sounds like you are talking about bounded contexts. Identifying and maintaining the correct bounded contexts within a monolith is supposed to give some of the benefits of microservices without taking on the inherent overhead (though in the end more discipline is required). The interesting thing is that applying DRY across context boundaries can result in a “mess of coupling”.

David Dawson:

• Development by Slogan with DRY: Part 1, Really DRY (2015-Jan-01)
• Development by Slogan with DRY: Part 2, The Tower of Coupling (2015-Jan-08)
• Development by Slogan with DRY: Part 3, DRY vs WET (2015-Jan-09)

Also InfoQ: Don’t Share Code Between Microservices (2015-Jan-25).

Yep! That’s what I was talking about!

Would be cool if you in the end shared this architecture as open source project.

Sure, but first of all we should improve diagram

I had a similar plan going.

But I’m wondering where to put both email delivery or file processing / uploading to s3? ACME bank has messaging as a separate module, but wojtekmach mentioned in another post that that repo is to demonstrate what’s possible more than what you necessarily should do. So just wanted to see the general consensus.

File processing / uploading - Depends on checking user permissions (biz logic) and saving newly created s3 URL to the db (biz logic), but the details of where to upload the file and how to process/compress the file are not super tightly tied to biz logic, right? I don’t know. But I’m kind of leaning to keeping file processing in the biz logic part of the app.

Messaging/transactional emails - Biz logic says which emails to send to whom and when… But it doesn’t necessarily need to know whether a message was successfully sent. It could theoretically just tell the messaging app to send a message, then forget about it. So I’m leaning toward that being a separate app.

I’m trying out the following structure

umbrella
├── core (Elixir)
├── web (Phoenix)
└── api (GraphQL)

├── config
│   ├── config.exs
│   ├── dev.exs
│   ├── prod.exs
│   └── test.exs
├── lib
│   ├── core
│   │   ├── checkout
│   │   │   ├── (...)
│   │   ├── account
│   │   │   ├── authorizers
│   │   │   │   ├── organization_authorizer.ex
│   │   │   │   ├── sales_channel_authorizer.ex
│   │   │   │   ├── shop_authorizer.ex
│   │   │   │   └── user_authorizer.ex
│   │   │   ├── models
│   │   │   │   ├── domain.ex
│   │   │   │   ├── organization.ex
│   │   │   │   ├── sales_channel.ex
│   │   │   │   ├── shop.ex
│   │   │   │   ├── tax_setting.ex
│   │   │   │   ├── theme.ex
│   │   │   │   └── user.ex
│   │   │   ├── repositories
│   │   │   │   ├── organization_repository.ex
│   │   │   │   ├── sales_channel_repository.ex
│   │   │   │   ├── shop_repository.ex
│   │   │   │   ├── theme_repository.ex
│   │   │   │   └── user_repository.ex
│   │   │   ├── organization_service.ex
│   │   │   ├── sales_channel_service.ex
│   │   │   ├── shop_service.ex
│   │   │   ├── theme_service.ex
│   │   │   └── user_service.ex
│   │   ├── inventory
│   │   │   ├── authorizers
│   │   │   │   ├── collection_authorizer.ex
│   │   │   │   ├── permalink_authorizer.ex
│   │   │   │   ├── variant_authorizer.ex
│   │   │   │   └── product_authorizer.ex
│   │   │   ├── models
│   │   │   │   ├── collection.ex
│   │   │   │   ├── image.ex
│   │   │   │   ├── permalink.ex
│   │   │   │   ├── price.ex
│   │   │   │   ├── product.ex
│   │   │   │   ├── stock.ex
│   │   │   │   └── variant.ex
│   │   │   ├── repositories
│   │   │   │   ├── collection_repository.ex
│   │   │   │   ├── permalink_repository.ex
│   │   │   │   ├── variant_repository.ex
│   │   │   │   └── product_repository.ex
│   │   │   ├── uploaders
│   │   │   │   └── image_uploader.ex
│   │   │   ├── collection_service.ex
│   │   │   │── permalink_service.ex
│   │   │   │── variant_service.ex
│   │   │   └── product_service.ex
│   │   ├── relation
│   │   │   └── models
│   │   │       ├── collection_permalink.ex
│   │   │       ├── product_collection.ex
│   │   │       ├── product_image.ex
│   │   │       ├── product_permalink.ex
│   │   │       ├── product_price.ex
│   │   │       ├── product_shop.ex
│   │   │       ├── product_stock.ex
│   │   │       ├── shop_organization.ex
│   │   │       ├── user_organization.ex
│   │   │       ├── variant_image.ex
│   │   │       ├── variant_permalink.ex
│   │   │       ├── variant_price.ex
│   │   │       └── variant_stock.ex
│   │   ├── application.ex
│   │   ├── authorizer.ex
│   │   ├── definitions.ex
│   │   └── repo.ex
│   └── core.ex
├── priv
│   └── repo
│       ├── migrations
│       │   ├── (...)
│       └── seeds.exs
├── test
│   └── (...)
├── README.md
└── mix.exs

In web and api I use the core package like:

{:ok, shop} = MyApp.Core.Account.ShopService.get(1)
{:ok, shop} = MyApp.Core.Account.ShopService.update(shop, params)

defmodule MyApp.Core.Account.ShopService do
  alias MyApp.Core.Account.{ShopAuthorizer,ShopRepository,Shop}

  def update(%Shop{} = shop, params) when is_map(params) do
    with :ok <- ShopAuthorizer.authorize(:update, shop),
      do: ShopRepository.update(shop, params)
  end
end

I have mail delivery in business logic - it is single point of sending emails in my umbrella application.
If I will change UI or add additional I will still have this functional.

Interesting! I hope you don’t mind, but I have a bunch of questions =)

It seems like your app must handle p2p payments and/or payment to use the app. So you handle the payment processing in the core app? Like, use stripe or something within the core app, or did you make a separate app to handle that?

I would imagine webhooks come in via your payment processor from time to time? Do you basically forward those directly to your core app?

When a request comes in via your api, where do you put the context plug for graphql? Like, the graphql app needs the context, which is given by the user account’s tokens grabbed from the core app, but is available via the connection in the web app? How did you put that bit together?

How did you end up handling file uploads with graphql? Are you posting to a separate non-graphql route for uploads or setting it in context?

Do your graphql resolvers ever call changesets directly or do they only hit up your services?

Are your graphql resolvers responsible for checking authorizations, or do your services ask for the authorization first, and the graphql resolver just calls the service?

Thanks!

Ask away! Small sidenote though, I’m still building it

It seems like your app must handle p2p payments and/or payment to use the app. So you handle the payment processing in the core app? Like, use stripe or something within the core app, or did you make a separate app to handle that?

Not really sure about this one yet, I would like to put the general (CRUD) payment logic in the core app but I’m still thinking about this one (and fulfilment as well).

I would imagine webhooks come in via your payment processor from time to time? Do you basically forward those directly to your core app?

I think a small router will handle the forwarding / parsing of the webhooks to the core app.

When a request comes in via your api, where do you put the context plug for graphql? Like, the graphql app needs the context, which is given by the user account’s tokens grabbed from the core app, but is available via the connection in the web app? How did you put that bit together?

The api is an GraphQL, Plug and Cowboy app. Any plug that is needed is placed with the app itself. (same for web) Both use the core app to check the credentials and retrieve the user.

How did you end up handling file uploads with graphql? Are you posting to a separate non-graphql route for uploads or setting it in context?

No sure yet, I’ve tested a couple of setups but haven’t found a good one yet.

Do your graphql resolvers ever call changesets directly or do they only hit up your services?

Only the services

Are your graphql resolvers responsible for checking authorizations, or do your services ask for the authorization first, and the graphql resolver just calls the service?

Guardian is used in both api and web to handle the authentication (token, session, etc). Comeonin is used in the core to handle the user related functions like creating the password hash and checking them.
