Squidie 0.3.0 is out.

Main announcement thread:

Squid Mesh - workflow automation runtime for Elixir applications

[Untitled] Squid Mesh is an open source workflow automation runtime for Elixir applications. It is aimed at Phoenix and OTP apps that want to define and run durable workflows in code without rebuilding the runtime layer around retries, replay, inspection, cancellation, and scheduling. Core Idea define workflows declaratively with triggers, payload contracts, steps, transitions, and retries run them durably on top of an existing Repo and Oban inspect run history with step and attempt detail…

Hex: squidie | Hex
GitHub release: Release v0.3.0 · dark-trench/squidie · GitHub
Docs / Livebooks: squidie v0.3.0 — Documentation

Short naming note: Squidie was previously called Squid Mesh. The package, modules, docs, examples, and repository metadata now use the shorter Squidie name.

Squidie is an embedded durable workflow runtime for Elixir/Phoenix and OTP apps. It keeps workflow state in the host app, rather than running as a separate workflow service.

{:ok, run} =
Squidie.start(MyApp.Workflows.Checkout, :manual, %{order_id: “order_123”})

{:ok, _snapshot} =
Squidie.execute_next(owner_id: “checkout-worker-1”)

Current capability shape:

Authored / visual workflows

• Runtime-authored workflow specs via start_spec/3 and start_spec/4
• JSON-safe visual editor round trips with Squidie.Workflow.EditorSpec
• Draft graph previews and editor diffing
• Host-owned action and guardrail registries
• UI-friendly run graph serialization
• Dynamic work preview, record, and schedule APIs

:ok = Squidie.Workflow.EditorSpec.validate_map(editor_map,
  action_registry: registry
)

{:ok, graph} = Squidie.Workflow.EditorSpec.preview_graph(editor_map,
  action_registry: registry
)

Code DSL workflows

• Spark-backed workflow DSL
• Durable run history, attempts, retries, approvals (HITL), replay, cancellation, and inspection
• Squidie.execute_next/1 execution boundary for host-owned workers

defmodule MiddleEarth.Workflows.RingErrand do
  use Squidie.Workflow

  workflow do
    trigger :leave_shire do
      manual()

      payload do
        field :bearer, :string, default: "Frodo"
        field :ring_id, :string
        field :route_preference, :string, default: "moria"
      end
    end

    step :pack_provisions, Hobbiton.Steps.PackProvisions,
      output: :provisions

    step :hide_at_prancing_pony, :pause

    approval_step :council_vote,
      output: :council,
      deadline: [within: 300_000, due_soon: 60_000, escalation: :operator_action]

    step :choose_path, Rivendell.Steps.ChoosePath,
      input: [bearer: [:bearer], decision: [:council, :decision]],
      output: :route

    step :cross_moria, Fellowship.Steps.CrossMoria,
      input: [:bearer, :provisions, :route],
      retry: [max_attempts: 3, backoff: [type: :exponential]],
      deadline: [within: 30_000, due_soon: 5_000, escalation: :diagnostic]

    step :reserve_eagle, Eagles.Steps.ReserveRide,
      compensate: Eagles.Steps.CancelRide

    step :toss_ring, Mordor.Steps.TossRing,
      irreversible: true

    transition :pack_provisions, on: :ok, to: :hide_at_prancing_pony
    transition :hide_at_prancing_pony, on: :ok, to: :council_vote
    transition :council_vote, on: :ok, to: :choose_path
    transition :choose_path, on: :ok, to: :cross_moria
    transition :cross_moria, on: :ok, to: :reserve_eagle
    transition :cross_moria, on: :error, to: :complete, recovery: :undo
    transition :reserve_eagle, on: :ok, to: :toss_ring
    transition :toss_ring, on: :ok, to: :complete
  end
end

Cron-triggered workflows use scheduling declarations:

defmodule Gondor.Workflows.BeaconWatch do
  use Squidie.Workflow

  workflow do
    trigger :nightly_beacon_check do
      cron "0 21 * * *", timezone: "Etc/UTC"

      payload do
        field :beacon_count, :integer, default: 7
      end
    end

    step :inspect_hilltops, Gondor.Steps.InspectHilltops,
      retry: [max_attempts: 3]

    step :light_beacon, Gondor.Steps.LightBeacon,
      compensate: Gondor.Steps.ExtinguishBeacon

    transition :inspect_hilltops, on: :ok, to: :light_beacon
    transition :light_beacon, on: :ok, to: :complete
  end
end

The runtime is executor-agnostic. A simple supervised worker loop can call Squidie.execute_next/1, or a host app can put a backend behind the delivery/lease boundary. Bedrock is a good fit when the app needs backend-owned delivery, delayed visibility, leases, heartbeats, retries, and dead-letter behavior.

Under the hood, Squidie uses a Jido journal runtime: actions, signals, agents, thread journals, checkpoints, storage, and supervised execution are used as runtime primitives, while Squidie exposes workflow-level APIs.

What is new in 0.3.0:

• Projection-backed run timeline inspection

• Runtime spec preview execution for visual editors and draft workflow validation

• Guardrail validator registries for host-approved input, action, and output guardrails

• Persisted completed guardrail decisions for inspection/explanations

• Better validation for incompatible guardrail policy/placement combinations and malformed
  guardrail config

• Structural quality gates in release and CI verification

There are Livebooks for the docs/getting-started path, including workflow creation, durable run execution, inspection, runtime-authored specs, and visual editor round trips.

There is also SquidSonar: GitHub - dark-trench/squid_sonar: Durable Workflow Dashboard · GitHub

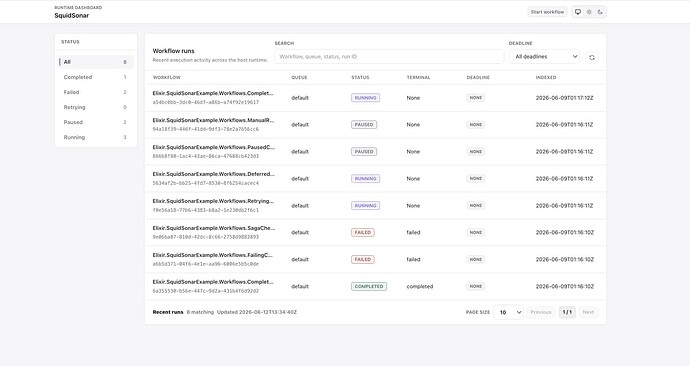

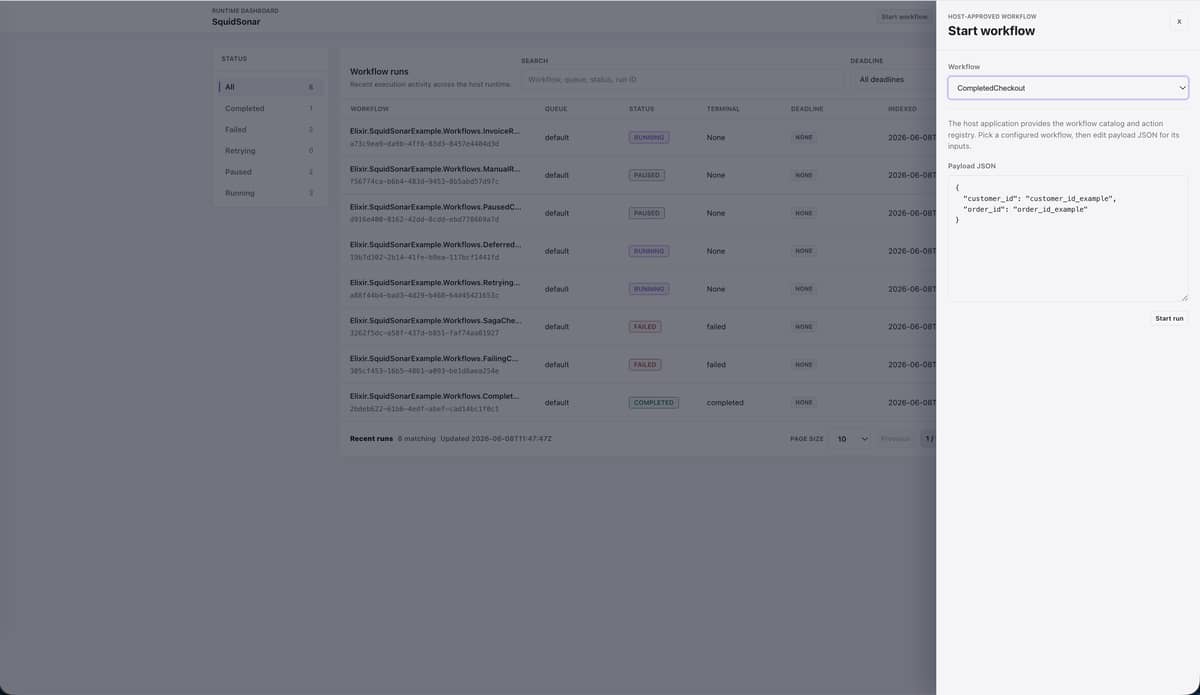

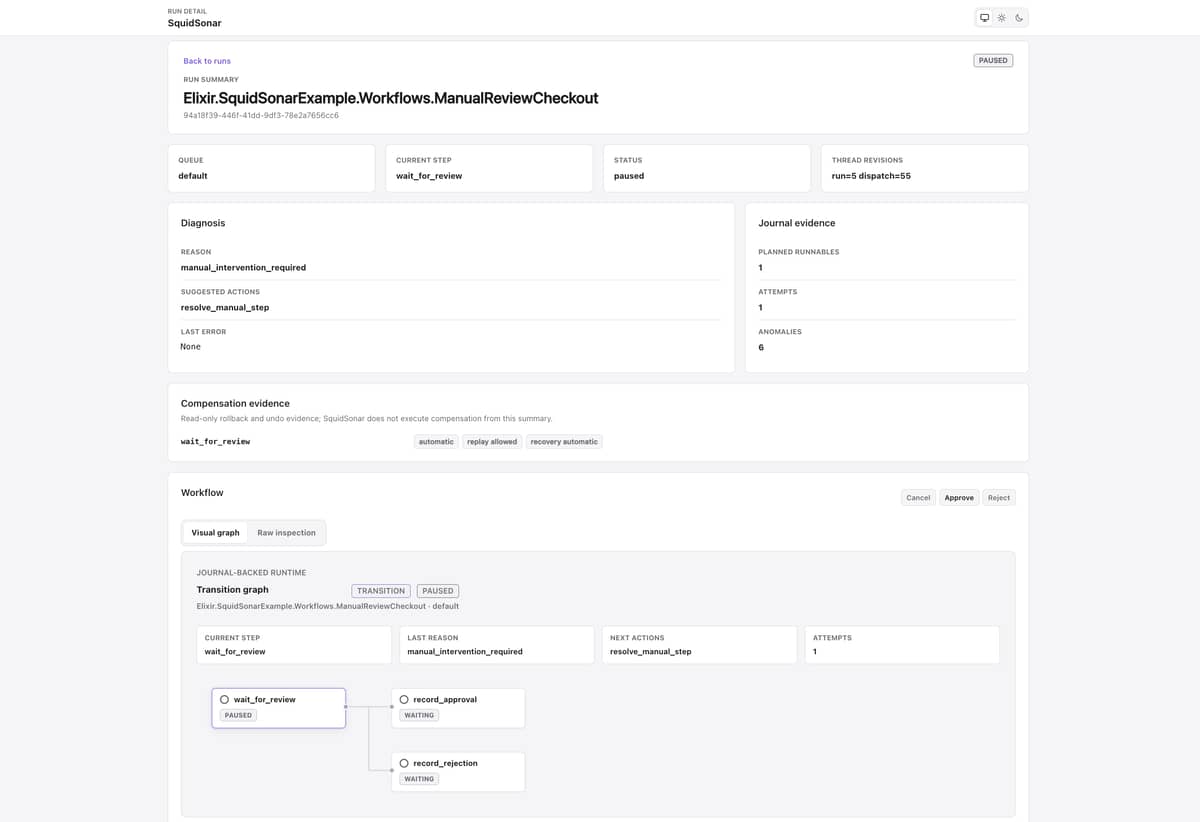

SquidSonar is the optional read-only Phoenix LiveView dashboard for Squidie. It can be mounted inside a Phoenix host app to inspect recent runs, filter by status, search runtime metadata, and view run details with diagnosis, history counts, last error information, and workflow graph visualization.

There’s a short example workflow OTP that fetches Elixir CVEs every 15min and posts to a discord channel, for quick reference: GitHub - dark-trench/the-beacon: Plain OTP app for scheduled monitoring and notifications · GitHub
